Solar HVAC System Configurations

Choose the perfect solar HVAC setup for your specific needs. From simple grid-tie systems to complete energy independence solutions.

High PV Output Scenarios

PV Generation > Demand; surplus available

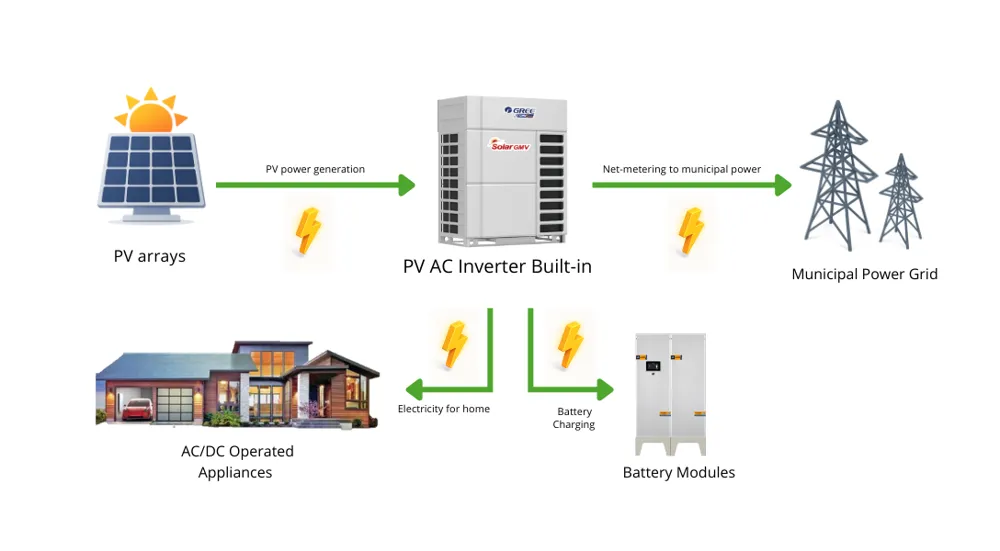

High PV Output Scenarios Workflow

Key Features

1

Midday Peak Generation PV output exceeds load; battery charging and grid export active

2

Clear Morning Ramp-Up PV output rises; gradually takes over load, starts charging battery

3

Battery Full, Grid Export Begins No more room to store energy — system prioritizes net metering

4

Cool Weather, Low Load Minimal HVAC use + high solar = max export
